How to Choose the Right Industrial Valve
Function first. The job the valve must do under real conditions. Everything else follows.

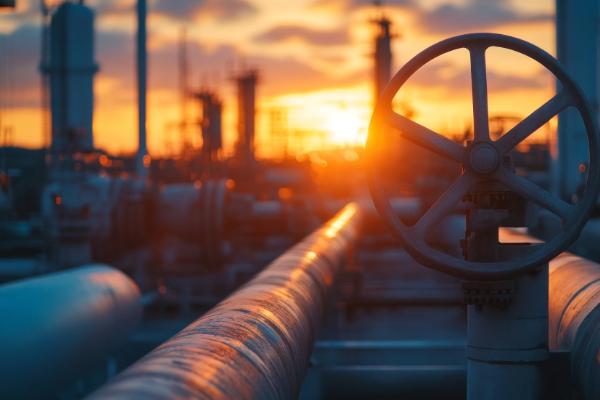

Valves on an active process line in Kenya. Each one is specified for a different function.
What does the valve actually need to do?
Every valve on a process line earns its place by doing one of five jobs. That decision comes before brand or price, and the line's worst-case pressure, temperature and medium narrow the choice further once the function is set.
On East African process sites, choosing a valve without naming its function first is expensive. Lead times are long and spare stocks are thin, so a wrong valve sits in the line until the next shutdown — or until it fails.
Five functions cover almost every case in a process plant. Each one points at a short list of families.
Operating requirement at worst-case line conditions
- Ball valve API 6D · ISO 17292
- Gate valve API 600 · ISO 10434
- Triple-offset butterfly API 609 Cat. B
- Butterfly valve (concentric) API 609 Cat. A
- Globe valve API 623 · BS 1873
- Control valve IEC 60534
- Check valve, non-slam API 6D · API 594
- Safety & relief valve ASME I / VIII · API 526
- Actuator package on the chosen valve ISO 5211
The rating that looks ample still has to survive the line
A valve rating does not mean the same thing at every temperature. Most of the failures we see show up at startup, shutdown, or surge — exactly when pressure and temperature rise together.
“A valve that looks fine on paper at 20 °C may already be past what that class allows at steam temperature.”
ASME B16.34 assigns pressure–temperature ratings by class — read at the line's actual temperature, not at 20 °C.
What is flowing through the line picks the body, the trim — the internal parts that control flow — and the seat. The price list comes later. The nameplate still looks correct. A carbon-steel body on an acid line is eaten from the inside.
A seat trades one strength for another. Soft seats, often PTFE, can meet a named leakage class (ISO 5208) on a test bench and still fail at high temperature or in a fire. Metal seats take the heat, but they seal only to the leakage class written on the specification.

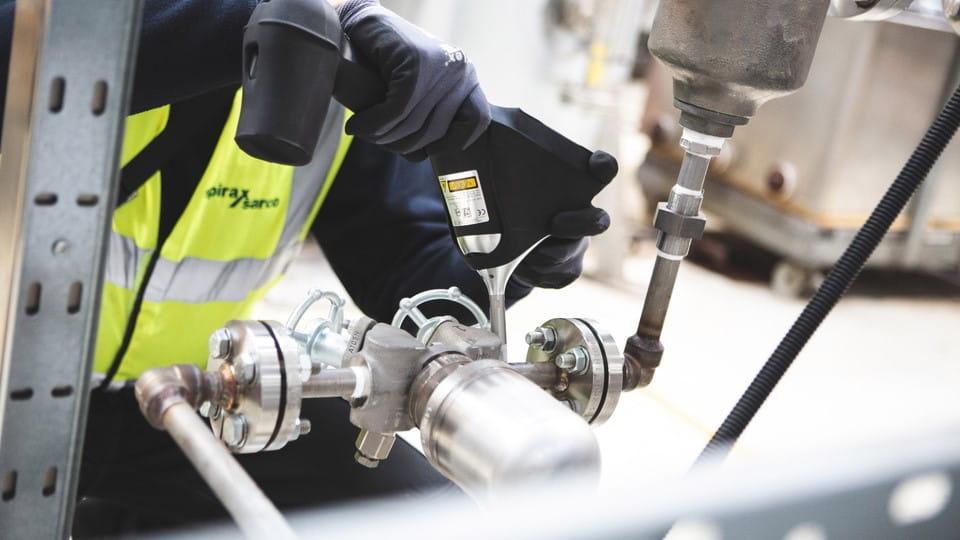

If a valve cannot be reached, isolated or rebuilt in place, it will be run until it fails. A three-piece body lets the middle section come out without cutting the line. Actuator clearance and a bypass are what make in-place service possible.
Maintenance access is not on the unit price. Skipping it shows up later as leaks, seized stems, and unplanned shutdowns.
Same family name. Different specification.
Two valves can share a family name and still be different products. The design standard is what actually fixes the dimensions, the pressure rating and how the valve gets tested — put it in the enquiry.
If the choice has already narrowed to butterfly or ball, that trade-off has its own guide: butterfly valve vs ball valve.
Butterfly valves are several products. Offset designs (API 609 Category B, including triple-offset — TOV) can isolate if they are specified to a leakage class. Concentric designs (Category A) are for moderate throttling at low pressure drop. Fine regulation duty stays with the globe valve.
EN 10204 3.1 — mill certificate tracing metal to its test report · TOV — triple-offset valve · ΔP — differential pressure across the valve · ESDV — emergency shutdown valve · SIL — Safety Integrity Level.
The design standard is family-specific: API 609 does not govern a gate valve.
| Function | Valve Family | Design Standard | Duty fit | Typical Application |
|---|---|---|---|---|
| Isolate1 | Ball valve Floating / trunnion |
API 6D · ISO 17292 Fire-safe API 607 option |
On/off shutoff to a named leakage class (ISO 5208). Not inherently leak-free. | Oil & gas, geothermal, process |
| Isolate2 | Gate valve | API 600 · ISO 10434 | Full bore, low pressure drop | Steam mains, water lines |
| Isolate / Regulate3 | Butterfly valve Concentric (Cat. A) / offset (Cat. B, incl. TOV) |
API 609 | Compact isolation (offset) or moderate throttling (concentric) — not a globe substitute | Steam isolation (TOV); HVAC / low-ΔP process (concentric) |
| Regulate4 | Globe valve | API 623 · BS 1873 | Precise flow control | Boiler feed, bypass |
| Regulate | Modulating control valve | IEC 60534 HART / Fieldbus are communications, not the design standard |
Modulating flow control | Pressure reduction, metering |
| Prevent backflow1 | Check valve Non-slam |
API 6D · API 594 | Fast closing, anti-hammer | Pump discharge, pipelines |
| Protect5 | Safety & relief valve | ASME I / VIII · API 526 | Certified pressure relief | Boilers, air receivers, vessels |
| Actuate6 | Actuator package Pneumatic ESDV / electric |
ISO 5211 SIL and ATEX/IECEx are site certificates, not this design standard |
Fail-safe or modulating actuation | Emergency shutdown, penstocks |
1 API 6D pipeline and piping valves · ISO 17292 metal ball valves; shutoff is a specified ISO 5208 leakage class, not a zero-leakage claim. · 2 API 600 / ISO 10434 steel gate valves · 3 API 609 butterfly valves (Cat. A concentric; Cat. B offset, including TOV) · 4 API 623 / BS 1873 steel globe valves · 5 ASME BPVC Sections I & VIII · API 526 · 6 ISO 5211 is the part-turn actuator attachment standard. SIL and ATEX/IECEx are site certificates, specified for the installation. Sources: the standards as numbered — full references in Sources & Further Reading below.
Two families can do the same work. Then the operating conditions — and what it costs to own the valve — decide which one belongs on the line. Put the design standard in the enquiry either way. Under one family name, suppliers can still quote different lengths, tests and leakage classes.
Look at the failures that start with the enquiry
Most of the selection failures we see follow five patterns. Each one comes down to a detail that was either written into the enquiry or left blank.
Wrong pressure class
The valve holds on a normal day and weeps or sticks the first time the line surges. The class matched average conditions, and the surge exceeded them.
Wrong material
A carbon-steel body on an acid or wet-steam line thins from the inside until it fails without warning. The cheapest metal on the price list was ordered because the enquiry never named the process medium.
Wrong sealing choice
The seat is tight at handover and gone at steam temperature. The factory filled a blank seat field with the cheaper soft option.
On a hydrocarbon line a soft seat may also fail a fire case. Soft and metal seats belong to different leakage classes.
Selecting on price alone
The cheapest valve that fits the flange is rarely the cheapest to own. In our experience, the service calls and downtime it brings outweigh the purchase-order saving long before the valve has earned its keep.
Ignoring maintenance access
If the actuator cannot be reached and the line cannot be isolated, the valve is run to failure. Clearance and a bypass belong on the original specification.
An hour on the specification is cheaper than a shutdown window on the line.
The small equipment failures analysis puts numbers on what leaking seats and glands cost each year, once a wrong selection is in service.
What a complete specification looks like
Every blank on a valve specification is a decision you leave to the manufacturer.
A like-for-like replacement repeats the same failure when the data is incomplete, because the new valve matches the nameplate and the nameplate was the mistake.
The configurations on our industrial valves page are specified against these fields.
| Specification field | Worked example — saturated-steam isolation (illustrative) |
|---|---|
| Function | Isolate — tight shutoff on a saturated-steam line. |
| Design basis | Credible worst case — startup, shutdown and surge included — rating checked at temperature against the ASME B16.34 class tables. |
| Process medium | Saturated steam, condensate present, no solids. |
| Family shortlist | Gate valve (API 600 · ISO 10434) or triple-offset butterfly (API 609) — decided by installation space, cycling duty and required leakage class. |
| Seat | Metal-seated: the steam temperature rules out a soft seat. |
| Connections | Flanged, face-to-face compatible with the existing line. |
| Materials | Body and trim matched to process medium and temperature. |
| Certification | Material certificates to EN 10204 3.1 (metal traced to its test report); PED category for the pressure equipment, as applicable. |
| Maintenance | Isolable and serviceable in place; actuator clearance confirmed before ordering. |
Illustrative worked example. Sources: ASME B16.34 · API 600 · ISO 10434 · API 609 · EN 10204 3.1 — full references in Sources & Further Reading below.
A bid package that answers all nine fields is also the fastest to quote. There is no clarification round and no assumed conditions.
Valve selection: common questions
Why does pressure class matter more than the average operating pressure?
Pressure class is a pressure–temperature rating, not a single pressure number. ASME B16.34 class tables are read at the design temperature; the allowable pressure at that temperature is what gets compared with startup, shutdown and surge. The gauge reading on a quiet day is not the number those tables are written for.
What is the difference between soft seats and metal seats?
A seat material choice is not a shutoff promise. PTFE can pass a visible-leak test at ambient and still fail at steam temperature or in a fire; a metal seat holds heat only to a named ISO 5208 leakage class. The leakage class and, where fire is a design case, API 607 testing do not follow from the words soft or metal — they have to be written on the specification.
How do you compare two industrial valve bids?
Two valve bids are comparable only when they name the same design standard, the same leakage class and the same worst-case temperature. A lower price that leaves those fields blank is a different product, not a discount. EN 10204 3.1 traces the metal to a mill test report; it does not make two offers equivalent if the design standard is missing.
Specifying a process valve?
Our engineers help match function and operating conditions to a suitable European-made valve — before brand or price settle the choice.
Discuss Your Application- Crane Co. — Flow of Fluids Through Valves, Fittings and Pipe (Technical Paper No. 410).
- Emerson — Control Valve Handbook and Fisher engineering references.
- Spirax Sarco — Steam engineering technical papers (valve selection for steam service).
- Flowserve — Valve and actuation engineering white papers.
- Samson — Technical guides on control valves and valve sizing.
- API 6D · API 600 · API 609 · API 607 · API 623 · API 594 · API 526 — American Petroleum Institute valve standards (pipeline/piping valves; steel gate; butterfly Cat. A/B; fire test; steel globe; check; flanged steel pressure-relief).
- ASME B16.34 — Valves: Flanged, Threaded, and Welding End; ASME BPVC Sections I & VIII.
- ISO 17292 · ISO 10434 · ISO 5208 · ISO 5211 — metal ball valves; steel gate valves; pressure testing of metallic valves (leakage classes); part-turn actuator attachments.
- EN 10204 3.1 — Metallic products: types of inspection documents.
- PED 2014/68/EU · ATEX 2014/34/EU — EU Pressure Equipment and explosive-atmosphere directives.
- BS 1873 — Specification for steel globe and globe stop and check valves (flanged and butt-welding ends) for the petroleum, petrochemical and allied industries.
- IEC 60534-1 — Industrial-process control valves: control valve terminology and general considerations.
