Industrial valves specified and sourced for the conditions they actually operate in.
How we specify
Medium, pressure, temperature, size, and how the line is operated. Then a shortlist across partners. Not a single-catalogue story.
Delivery & lead-time assessment on every enquiry
Valve range
Ball, butterfly, gate & globe, automation, and protection — click a family for its specification.

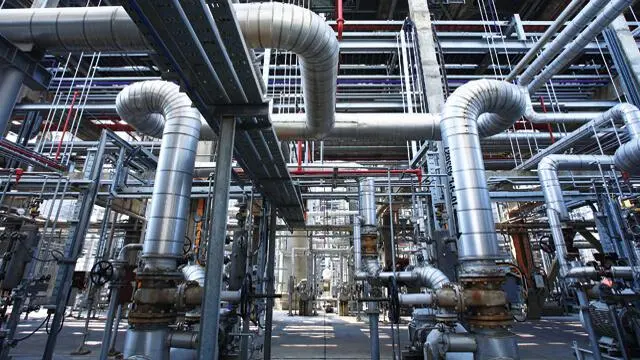

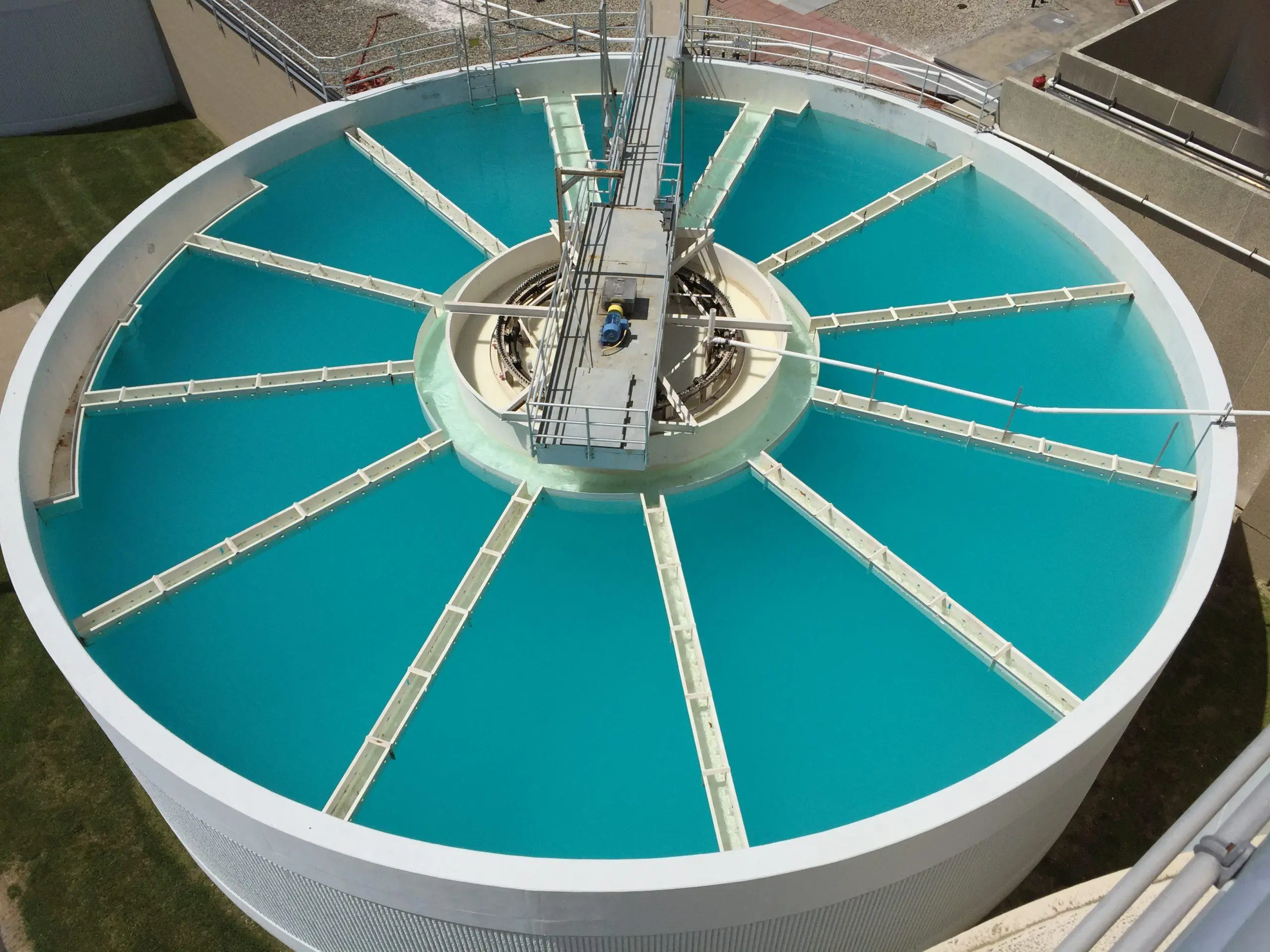

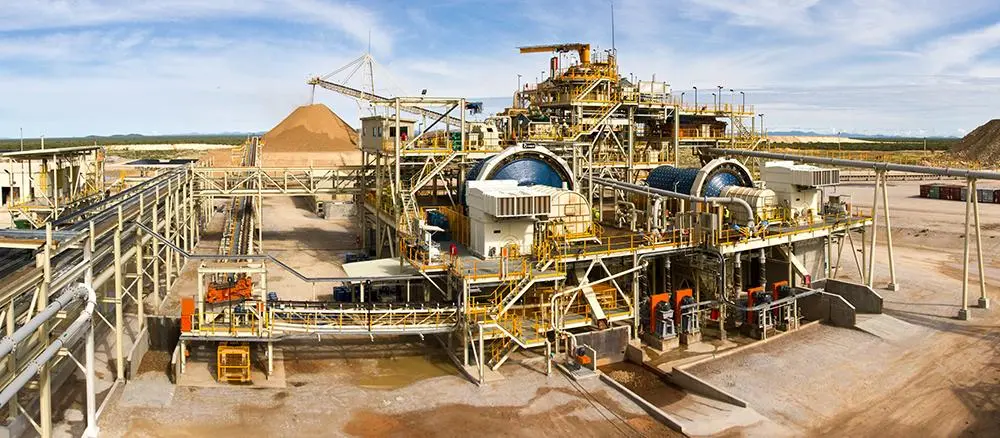

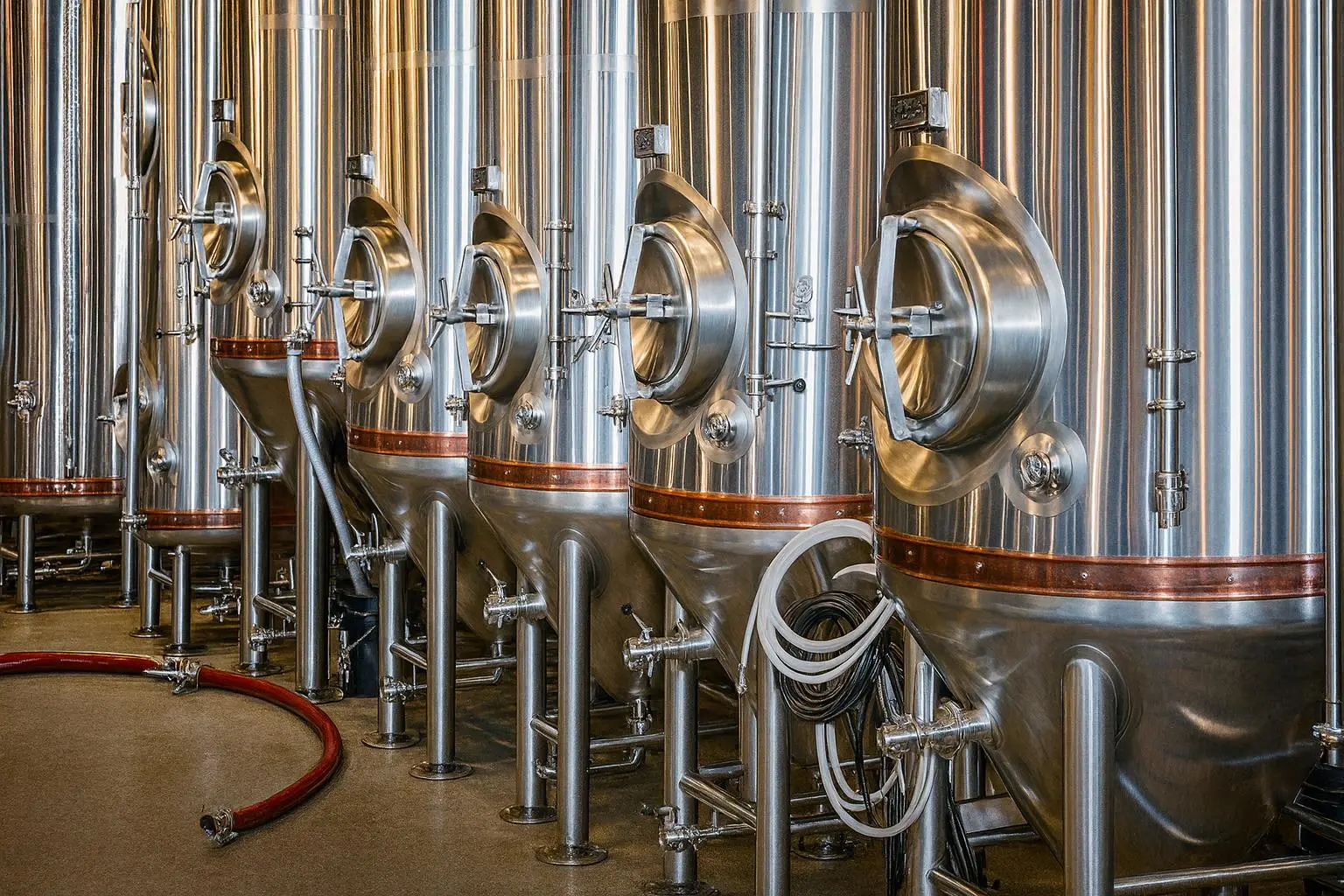

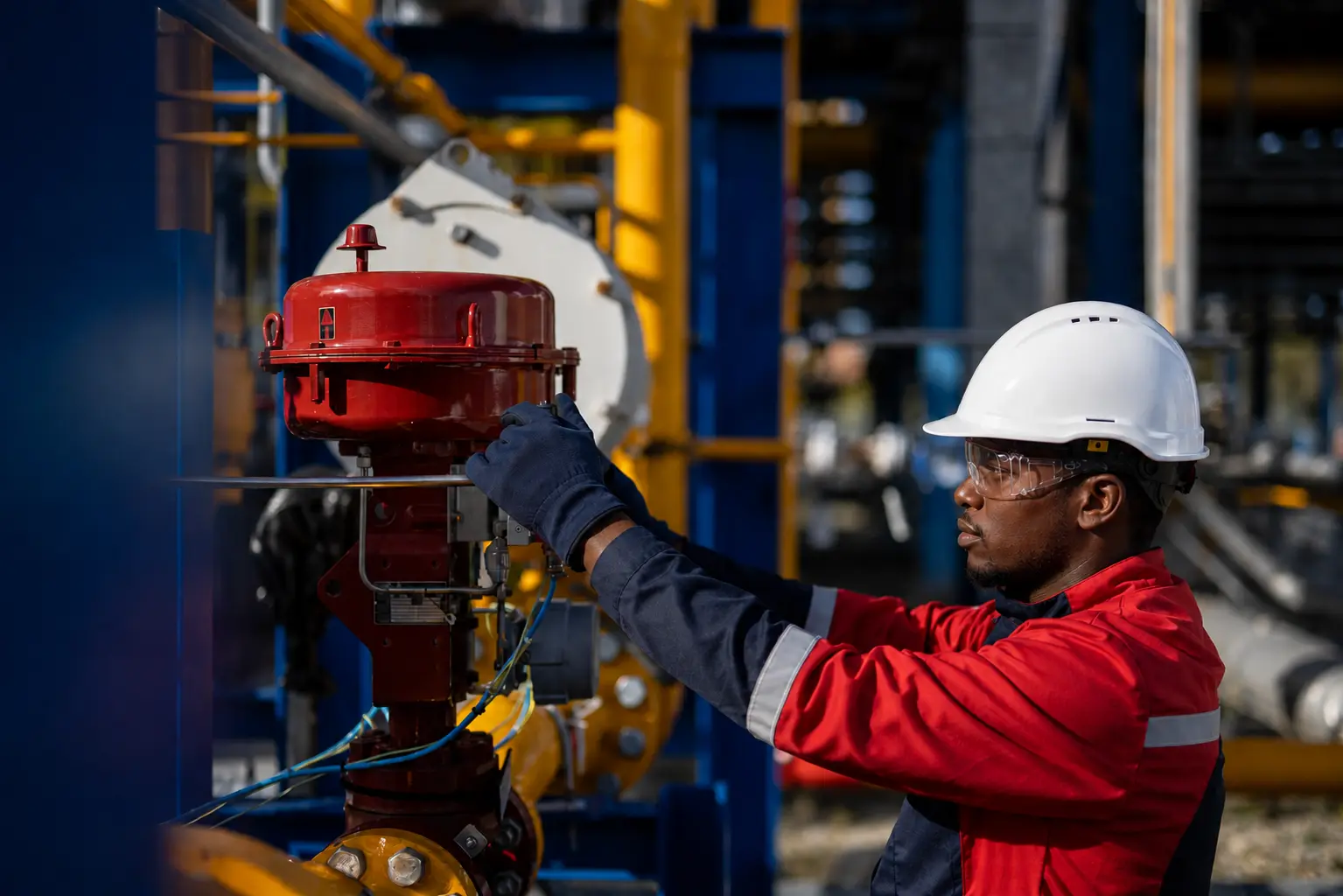

Applications we serve
Specifications
Standards, duty, DN, and materials for each family — the detail behind the range above. Not sure on size? Run the duty through the valve sizing calculator. Body and seat follow the chemical compatibility worksheet. Full datasheets on request.

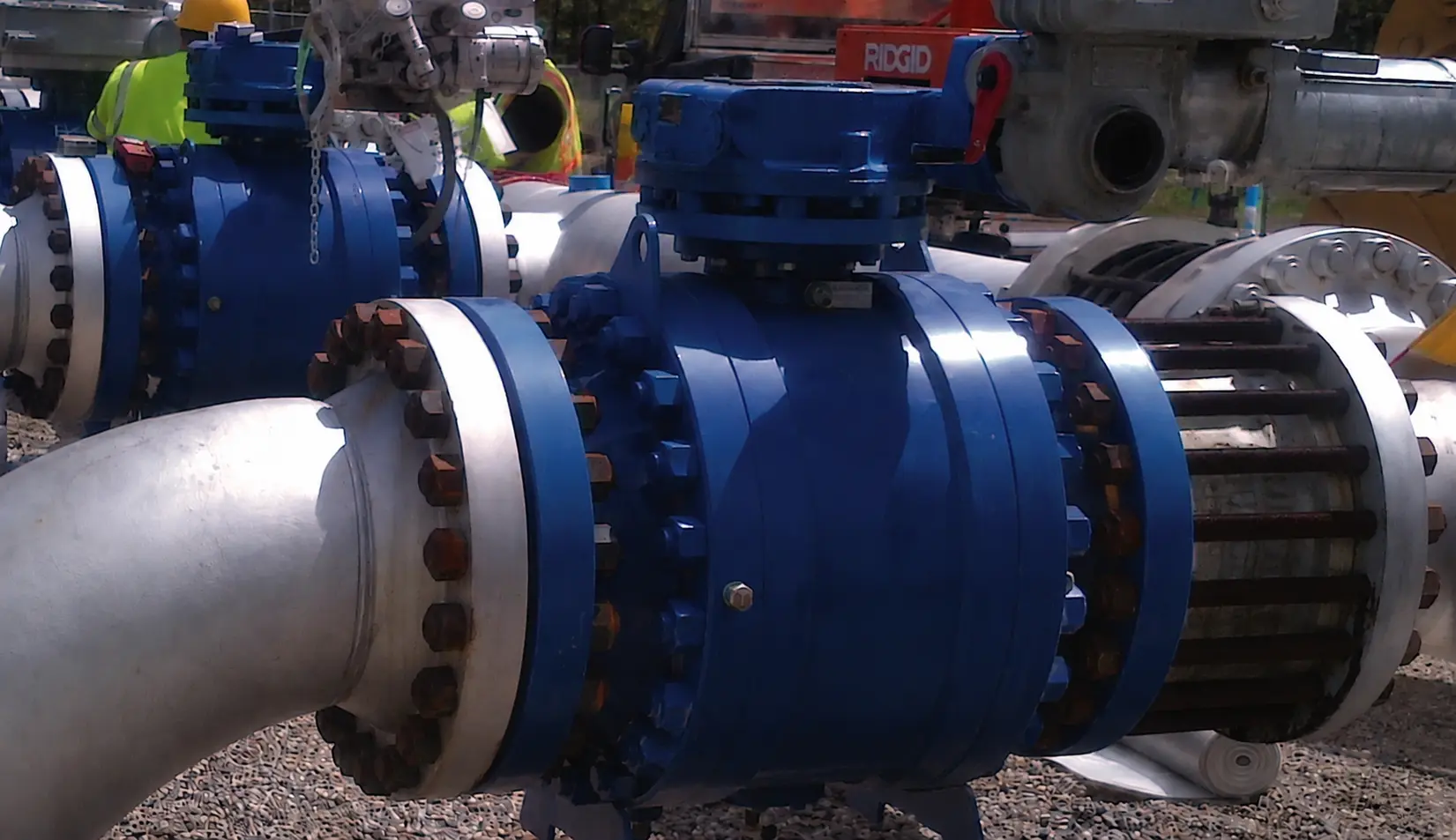

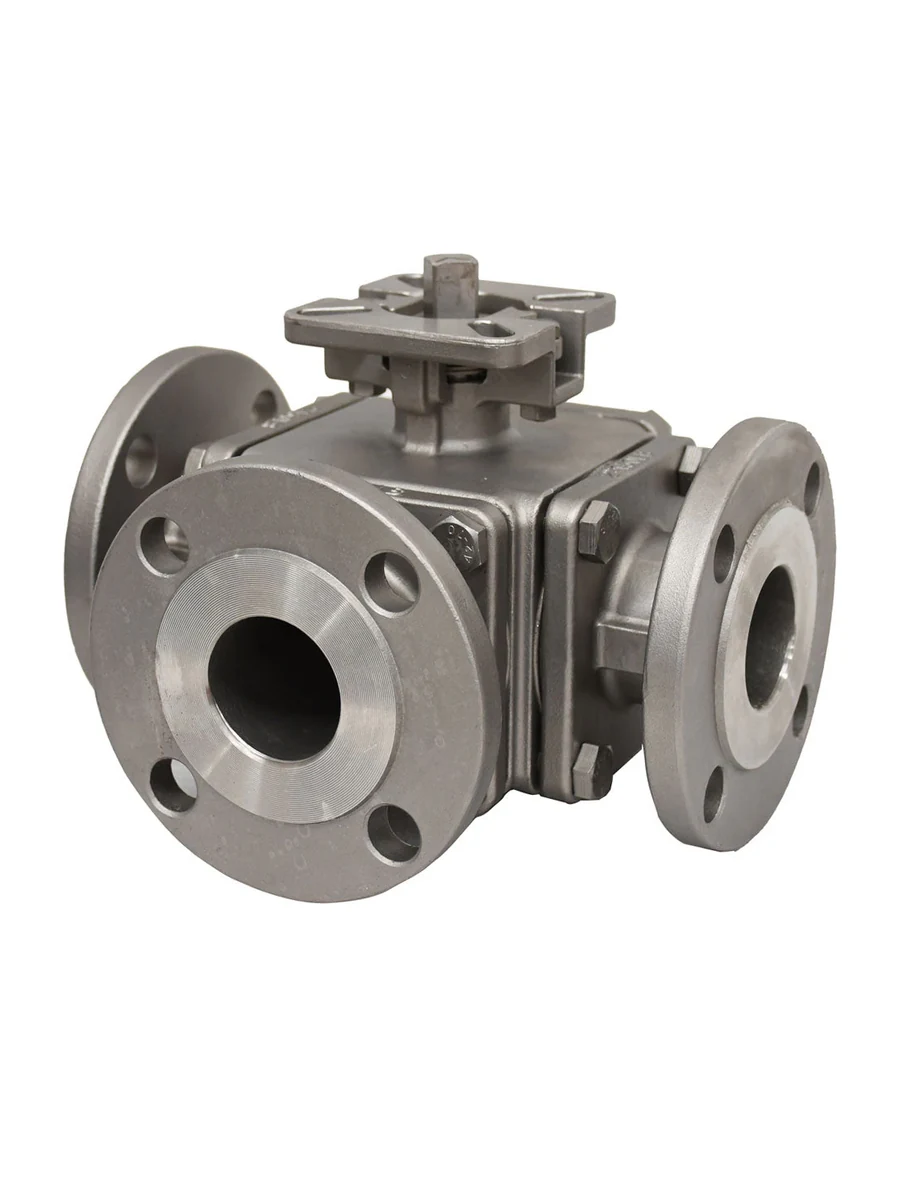

Isolation
Fast zero-leakage shutoff.
Application

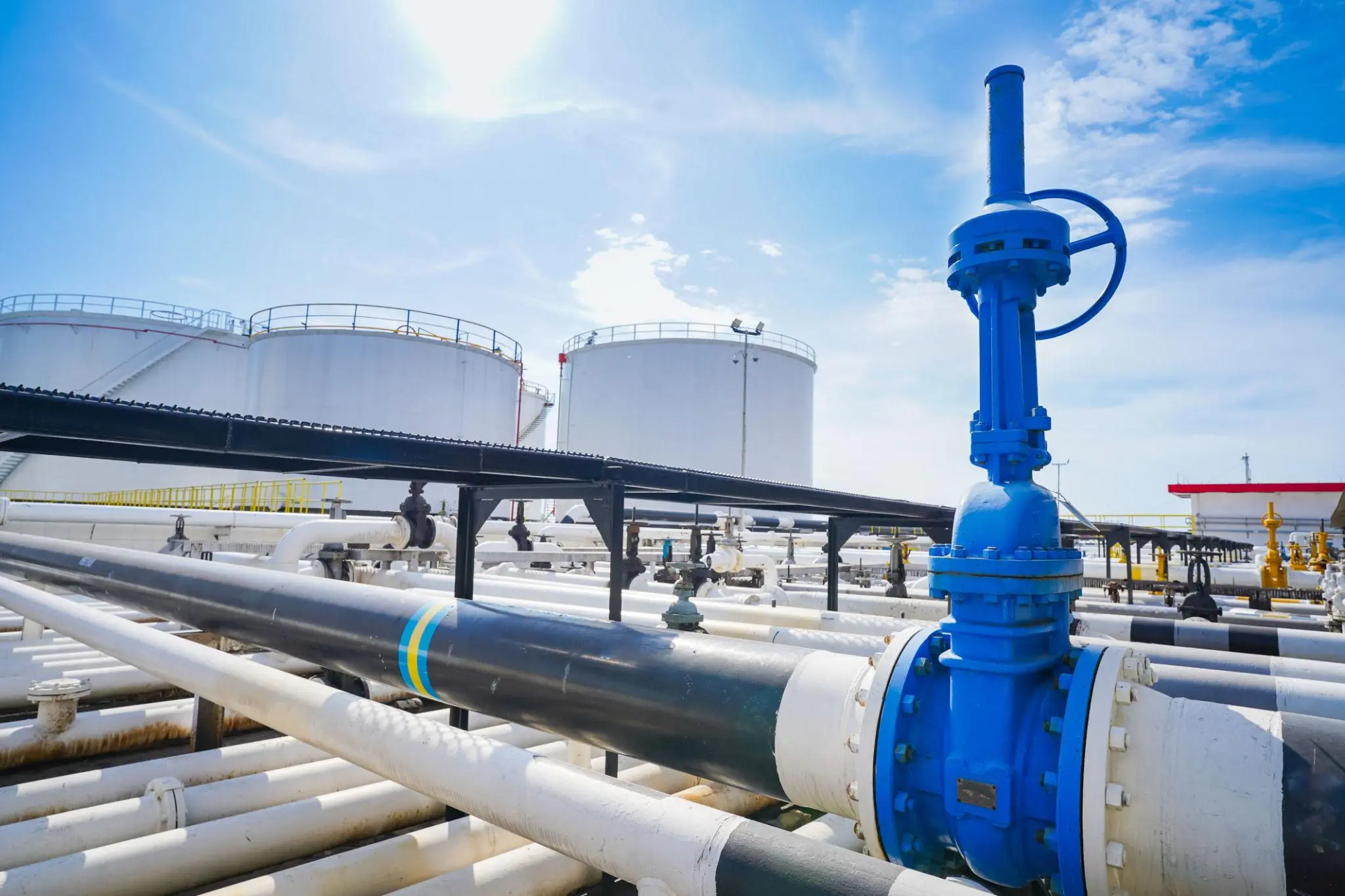

Oil & gas, geothermal, steam, process shutoff, pipelines.
Advantage
Floating for general duty; trunnion for high pressure.
Typical DN
DN15–DN600
Materials
Body CF8 / CF8M or WCB; soft or metal seats per media.
Standards
API 6D · API 607 · ISO 17292
Supply dims
DN + PN / Class with the duty

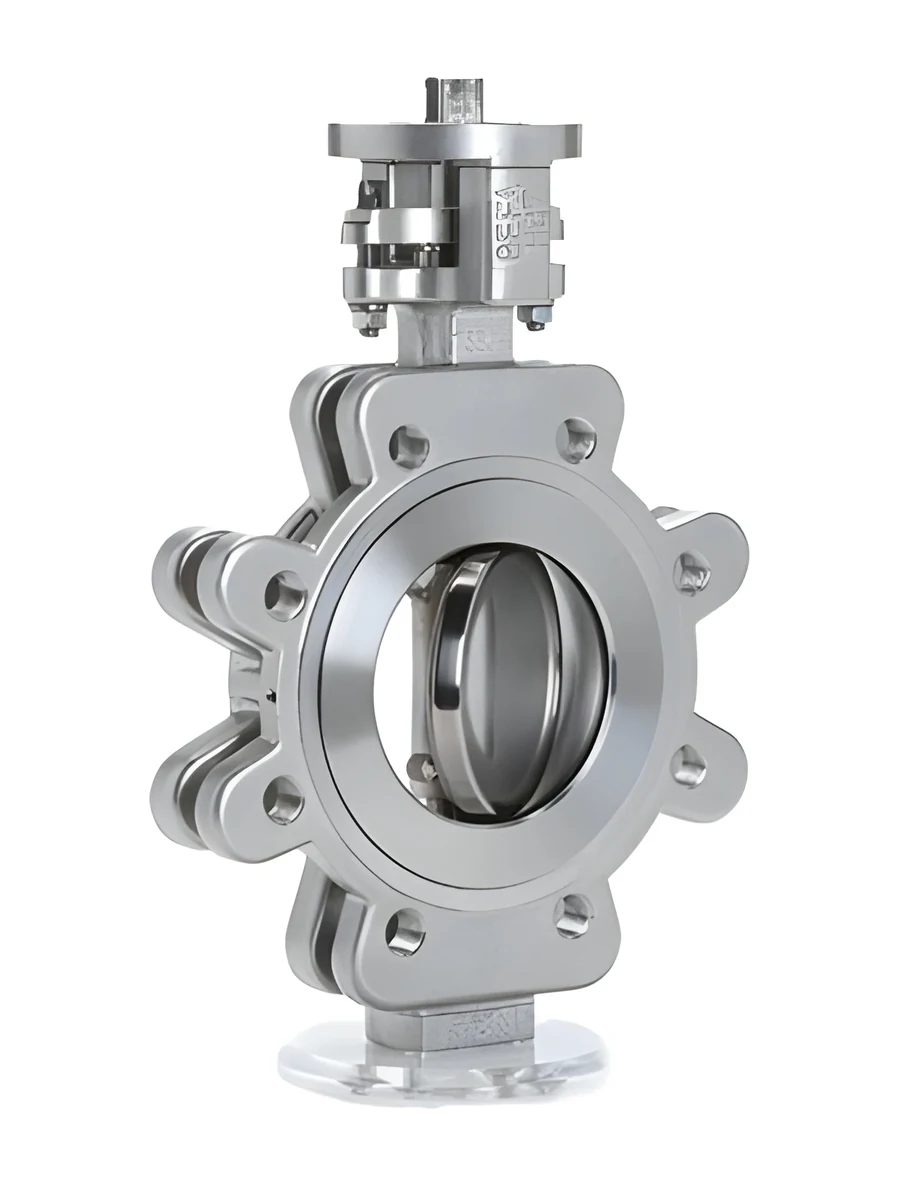

Flow control
Compact large-diameter control.
Application

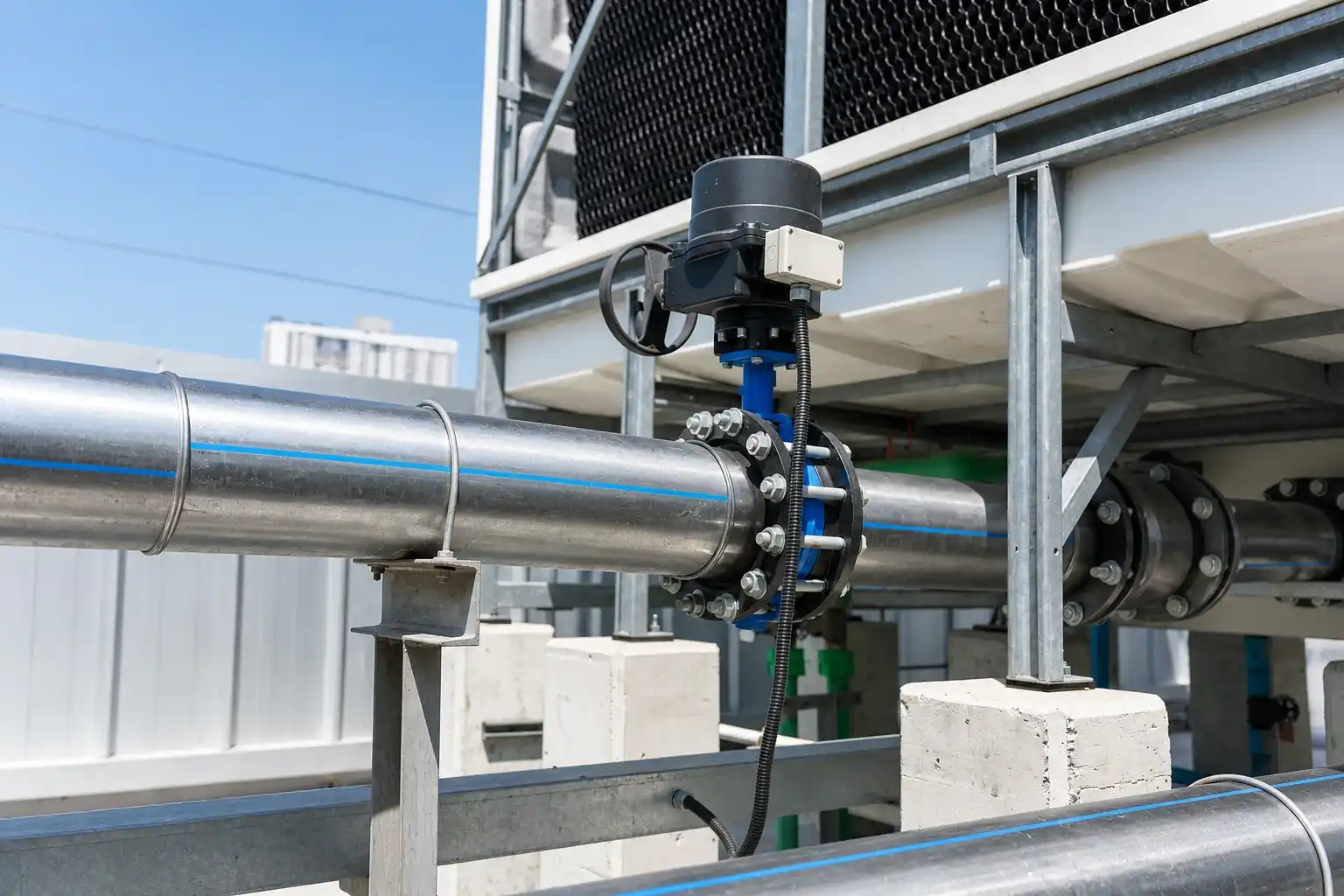

Large-bore water, HVAC, cooling, process control, bypass.
Advantage
Double / triple-offset where sealing and torque matter.
Typical DN
DN50–DN1200
Materials
Body GG25 / GGG40 epoxy or SS; seats EPDM / NBR / Viton.
Standards
API 609 · ISO 5752 · EN 593
Supply dims
DN + PN / Class with the duty

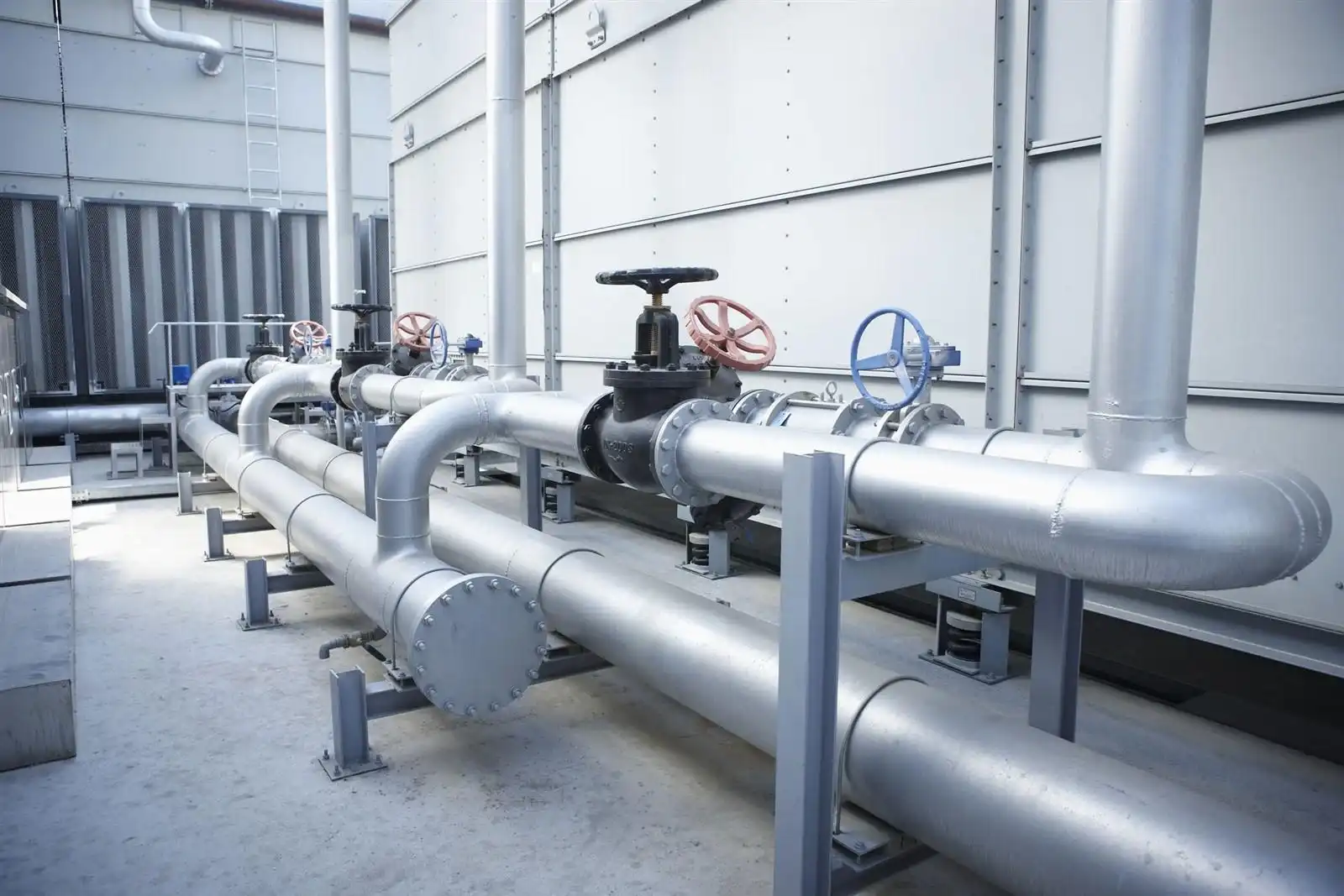

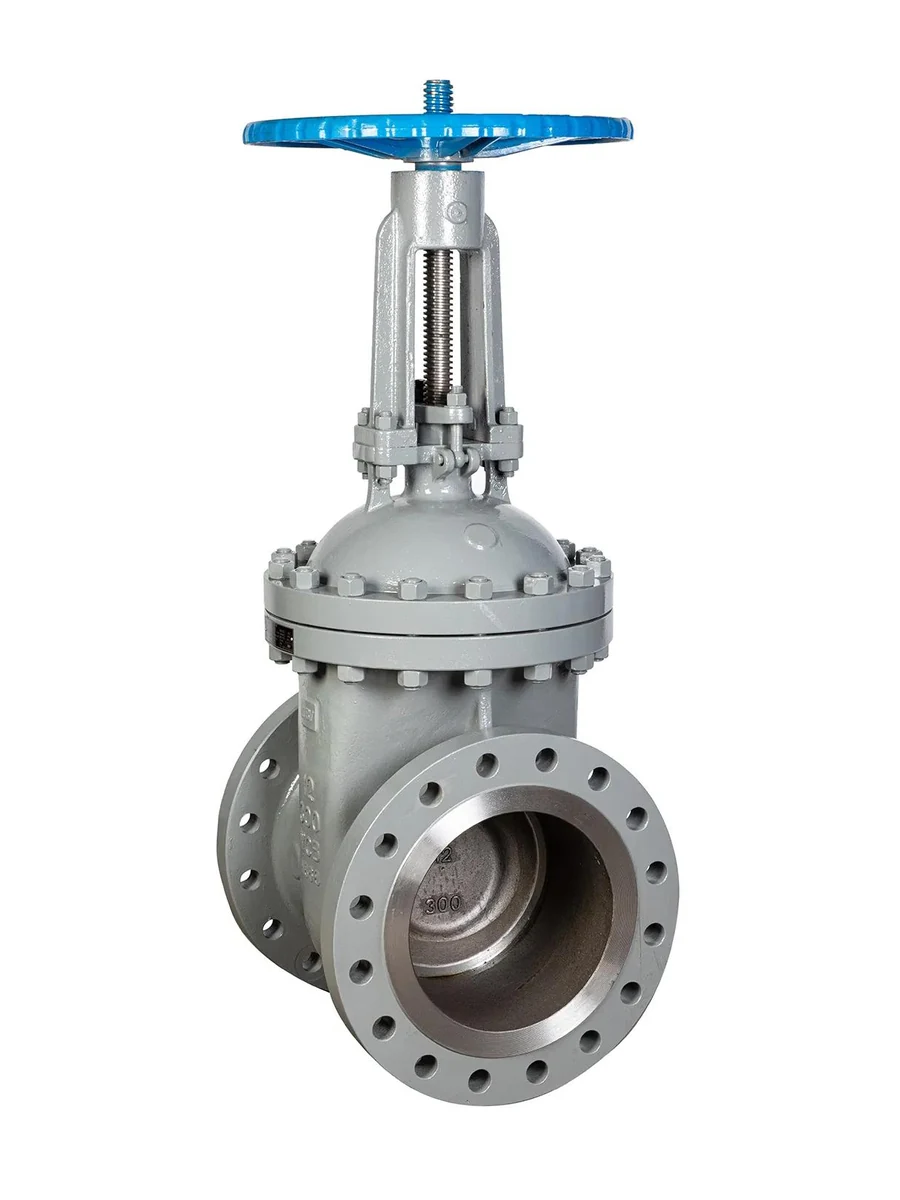

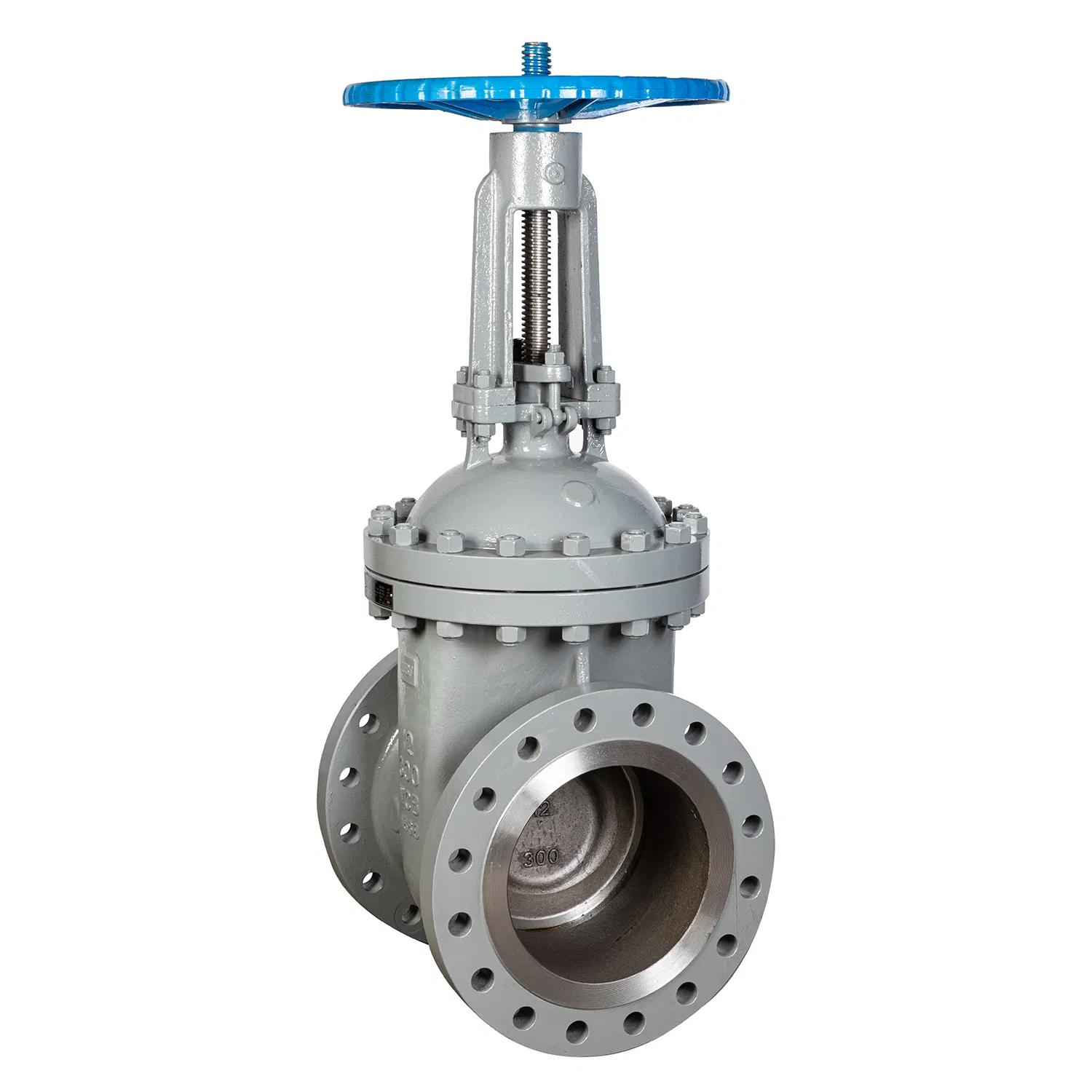

Isolation & throttling
Gate for full-bore isolation; Globe for precise throttling.
Application
Steam, boiler feed, water transmission.
Advantage
Full-bore when pressure drop must stay low; globe when you need control.
Typical DN
DN15–DN600
Materials
Cast steel WCB / SS; trim matched to steam or water duty.
Standards
API 600/623 · BS EN 13709 · EN 1984
Supply dims
DN + PN / Class with the duty

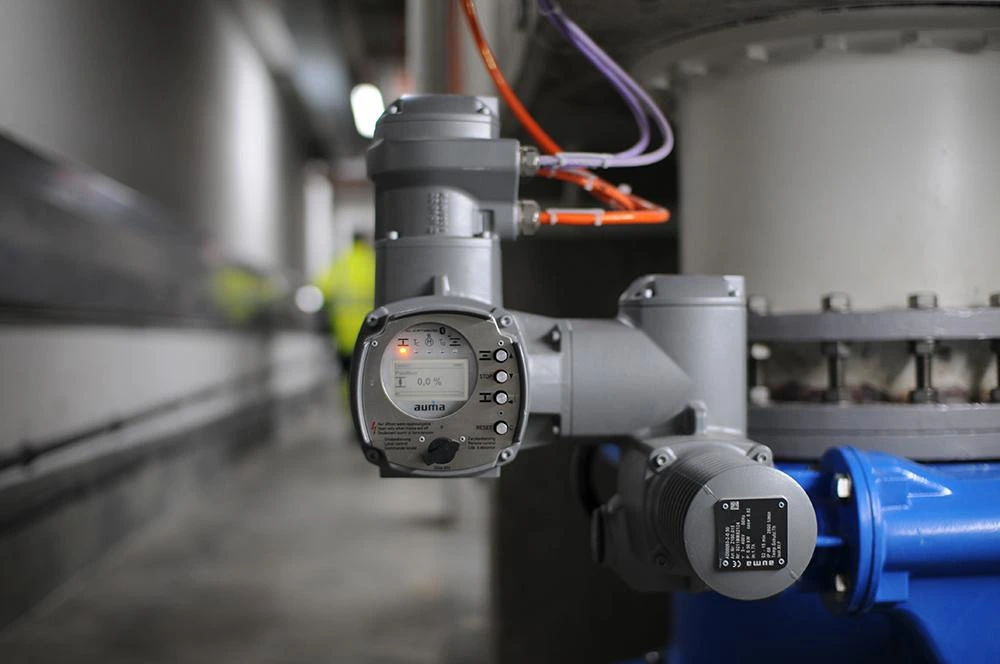

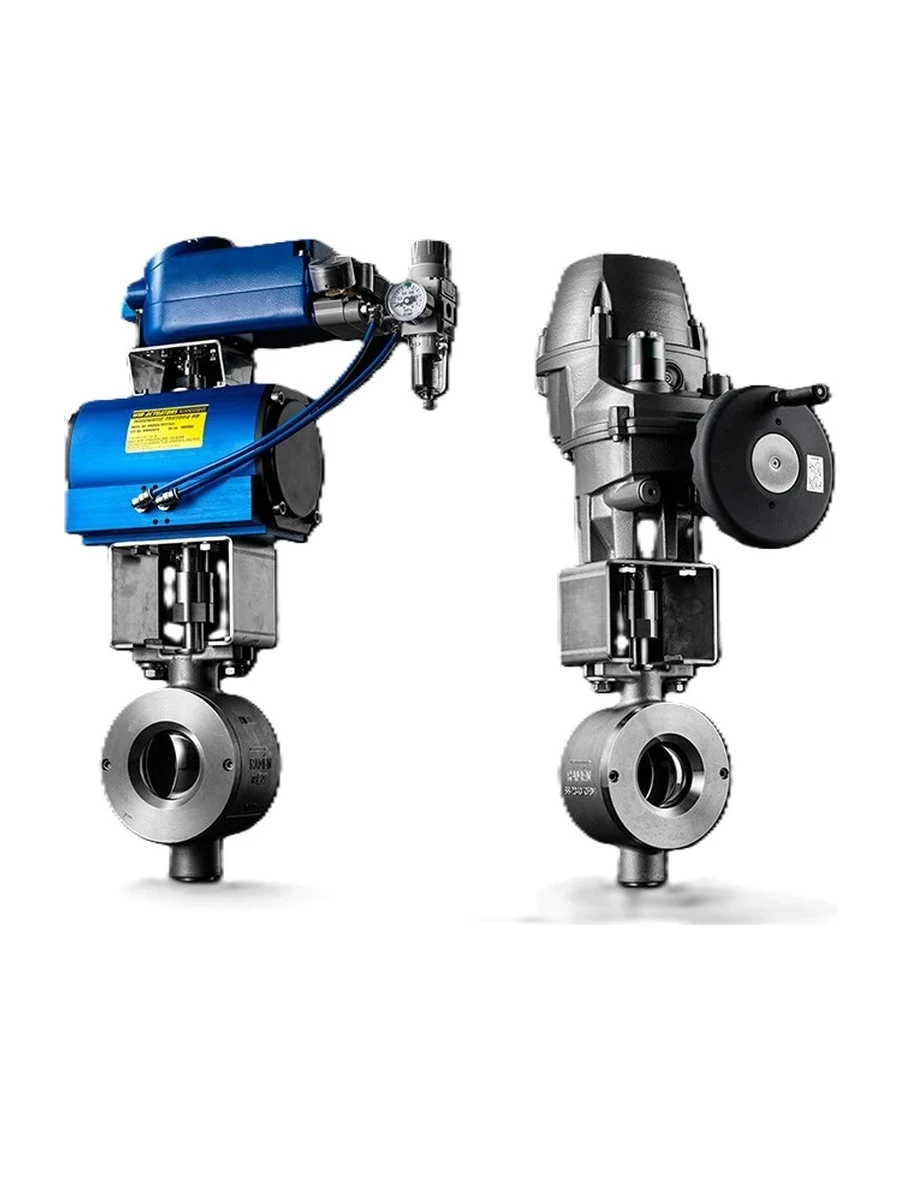

Actuated packages
Valve + actuator integrated, bench-tested.
Application
ESD, penstocks, remote control, plant automation.
Advantage
Package sized as a unit — torque, fail mode, feedback included.
Typical DN
Matches base valve
Materials
Actuator per area classification; valve materials per process.
Standards
SIL 2/3 · ATEX/IECEx · API on base valve
Supply dims
DN + PN / Class with the duty

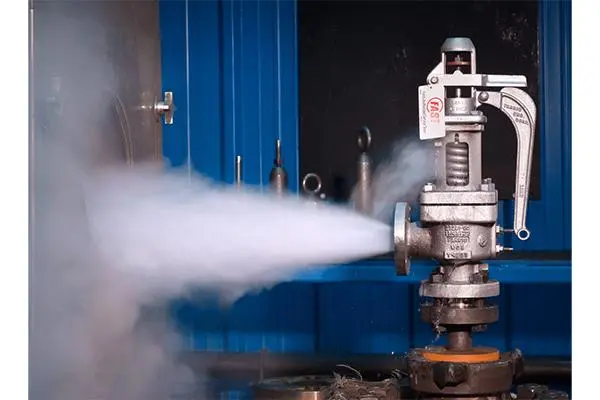

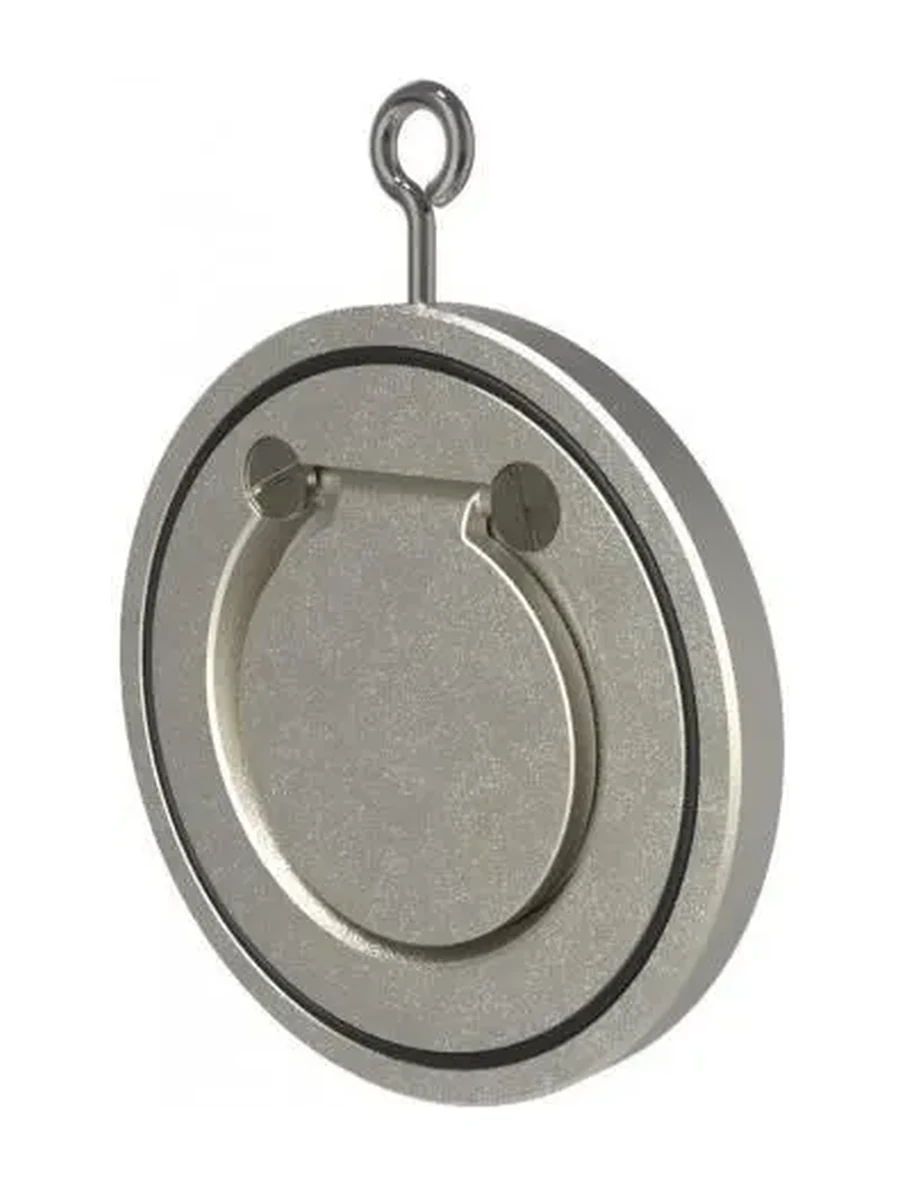

Check & safety relief
Check for backflow / water hammer; safety relief for overpressure.
Application
Pump discharge, utility lines, vessels — DOSHS where required.
Advantage
Stops reverse flow and vents overpressure before the line pays for it.
Typical DN
DN25–DN600
Materials
Body and trim by medium; soft seats or metal as duty demands.
Standards
EN / API check · PED · DOSHS calibration
Supply dims
DN + PN / Class with the duty
Materials & connections
Once the family is clear, selection tightens to body / trim / seat materials and the flange standard that matches the line — EN or ANSI.
Material code
23Cast iron GG25 Epoxy24Ductile iron GGG40 Epoxy44Cast steel A216 WCB63SS CF866SS CF8M13Alu-Bronze ASTM B148 C9540024DI GGG40 Epoxy25DI Nickel plated27DI Nylon plated63SS CF866SS CF8M69SS CF8M polishedEEPDMWEEPDM WhiteHEHigh-temp EPDMBNBRNGNBR GasVVitonVBViton BioECOEpichlorohydrinCSMHypalonSSiliconeFCAbrasion resistanceMaterial code
PXtype · body · disc/trim · seat — selected against medium, pressure, and temperature.
Flange connections
DN + PN / Class selector
| DN | A hole Ø | B bolt circle | C flange Ø | # | Bolt |
|---|
Next step
Medium, pressure, temperature and size, or a drawing or specification. You get a shortlist with the reasoning, a clear lead time, and datasheets and certificates on request.
