Critical-Application
Fluid Control Systems.
Belgian Reliability. Kenyan Execution.
The fully PVoC-compliant supply pathway for Kenya's energy and industrial sectors.
Ball Valve Selection Matrix
Ref: PV-BV-SELECT-2026| Valve Configuration | Sourced Design Standard  |
Performance Limits | Traceability | Primary Application |
|---|---|---|---|---|
|
Trunnion Mounted Ball Valve
|
API 6D / ISO 14313 Fire Safe API 607 (Sourced OEM) |
Zero Leakage (Soft/Metal) Max Temp: ~450°C+ |
EN 10204 3.1
|
Oil & Gas / Geothermal |
|
Floating Ball Valve (1/2/3 pc)
|
ASME B16.34 / ISO 17292 Sourced from Certified OEMs |
Class VI (Tight Shutoff) Max Temp: ~260°C |
EN 10204 3.1 | Steam, Gas, Process Control |
|
Multi-Port Ball Valve
|
API 6D Compliant L/T/X Port Designs |
Fire Safe Options High-Cycle Reliability |
EN 10204 3.1 | Chemical Blending / Diverting |
|
Hygienic Ball Valve
|
FDA 21 CFR / EC 1935 Audit-Ready Compliance |
Cavity Filled Seats Class VI (Tight Shutoff) |
EN 10204 3.1 | Food & Bev (Specialty) |
* All Proxico Vanguard™ valves are sourced from API & ISO licensed manufacturers. 3.1 Material Certificates (Heat No. Traceability) are verified against the physical product prior to DDP dispatch.

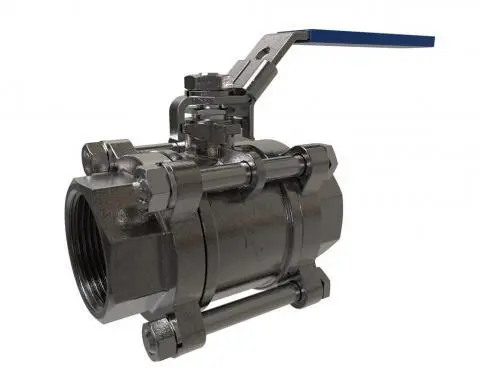

1/2/3 Piece Ball Valves
High-temp isolation for steam & brine. As used in KenGen's Olkaria geothermal network to ensure safe, seizure-free operation.
- Dimensions
- 1/4" - 4"
- Function
- Isolating or regulating
- Materials
-
Body: Carbon, Stainless or Duplex Steel
Ball: Stainless or Duplex Steel
Seat: PTFE / Reinforced PTFE
Ideal Applications:
Steam Lines, Hot Brine, High-Pressure Instrumentation
Did you know?

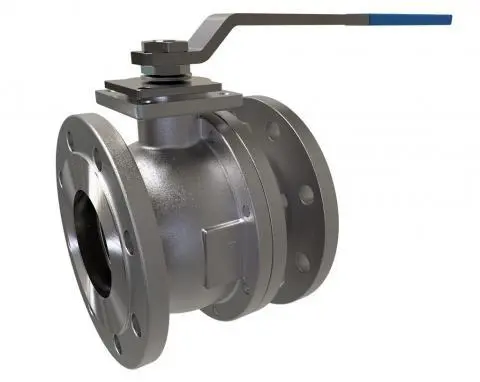

Flanged Ball Valves
Floating and Trunnion type for controlling water, air, oil, LPG, and cryogenic fluids. Meets KPC Line specifications for flow assurance and environmental safety.
- Dimensions
- DN 15 - DN 600
- Pressure
- PN16, PN40, ANSI 150/300
- Operation
- Lever, Gear, Pneumatic/Electric Actuator
Ideal Applications:
Oil & Gas Pipelines, Power Generation, Water Infrastructure
Did you know?

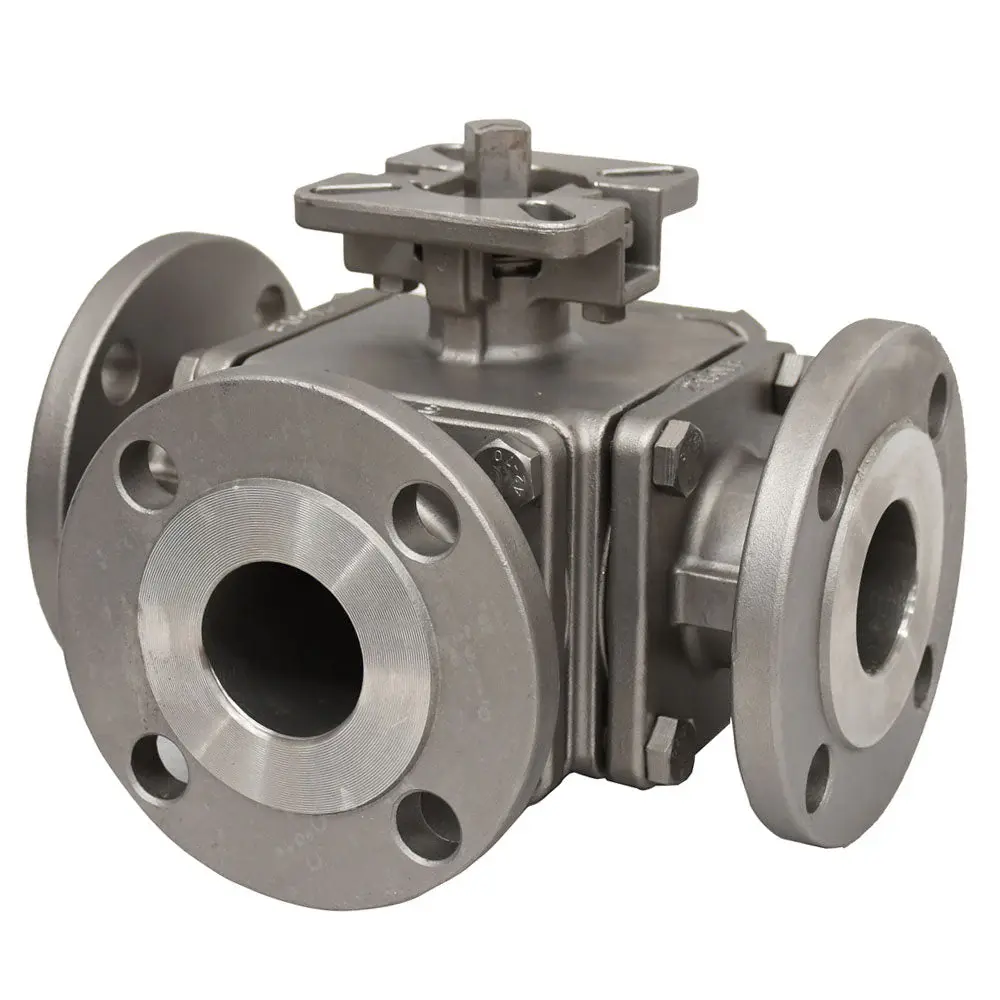

3/4 Way Ball Valves
Multi-port designs for diverting or mixing fluids in water, air, oil, and gas applications. Precision diverting for multi-product lines. Trusted in KPRL cracking units to maintain strict separation between crude and refined products.
- Ports
- L-Port, T-Port, X-Port
- Actuation
- Manual, Pneumatic and Electrical
- Standards
- ANSI B16.34, API 598 Tested
Ideal Applications:
Fluid Mixing/Blending, Diverting Flow, Heat Exchangers
