Precision Engineered
Butterfly Valves.
Belgian Reliability. Kenyan Execution.
High-performance isolation and regulation solutions for Kenya's chemical and geothermal sectors. Built to European standards.
Butterfly Valve Selection Matrix
Ref: PV-BF-SELECT-2026| Valve Configuration | Sourced Design Standard  |
Performance Limits | Traceability | Primary Application |
|---|---|---|---|---|
|
Triple Offset (Severe Service)
|
API 609 Cat B Fire Safe API 607 (Certified) |
Zero Leakage (Metal Seat) Max Temp: ~450°C+ |
EN 10204 3.1 | Geothermal / Oil & Gas |
|
Double Offset (High Perf)
|
API 609 Cat B Sourced from Certified OEMs |
ANSI Class VI (Tight Shutoff) Max Temp: ~260°C |
EN 10204 3.1 | Steam, Gas, Process Control |
|
Centric PTFE/PFA Lined
|
ISO 5752 / API 609 Acid/Corrosion Immune |
Class A (Bubble Tight) Max Temp: ~200°C |
EN 10204 3.1 | Chemical / Food & Bev |
* All Proxico Vanguard™ valves are sourced from API & ISO licensed manufacturers. 3.1 Material Certificates (Heat No. Traceability) are verified against the physical product prior to DDP dispatch.

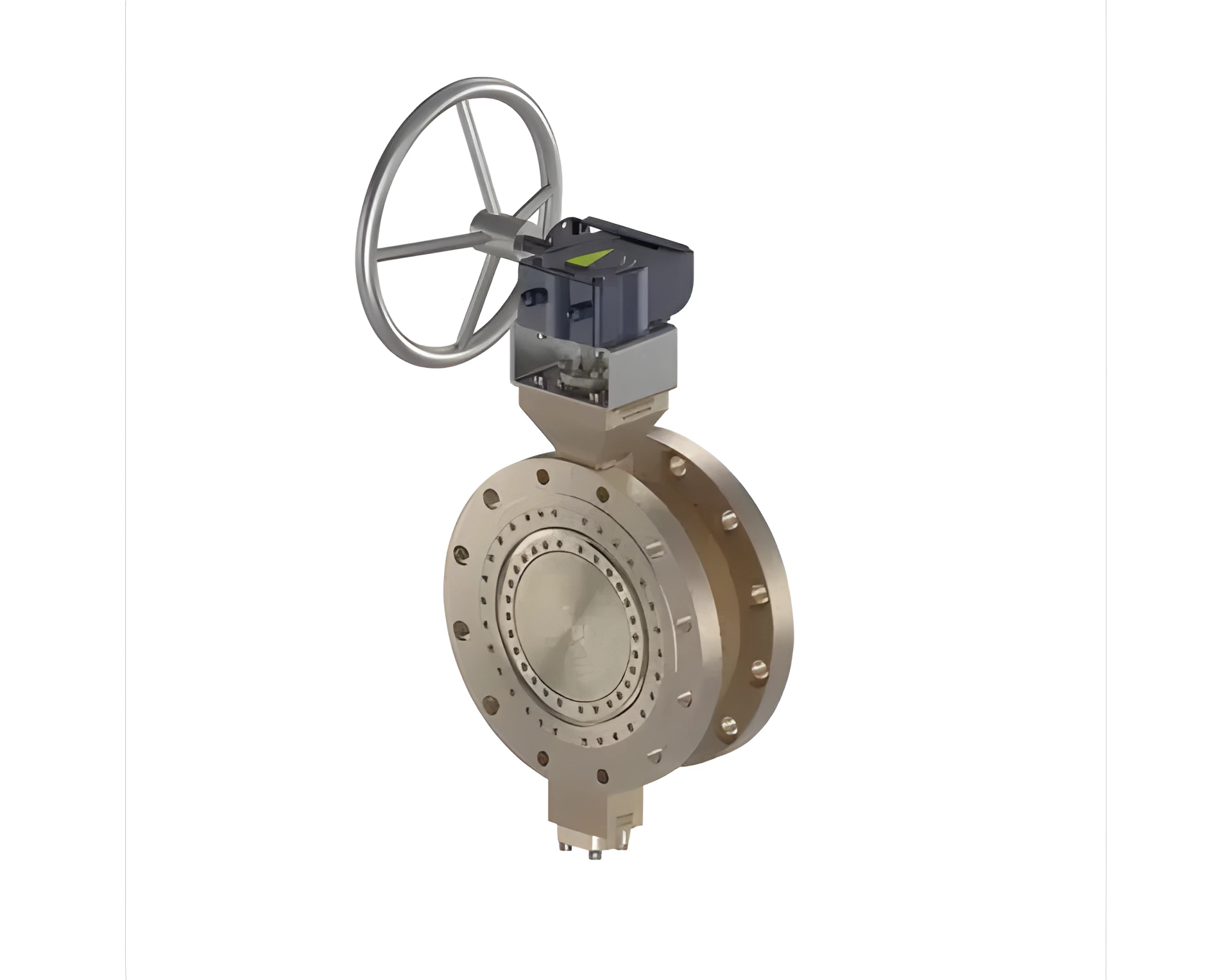

Triple Offset Butterfly Valve
Wafer, lug, or double flanged triple offset body with metal-to-metal seating.
- Dimensions
- DN80 - DN1200
- Pressure
- ASME Class 150 - 900 / PN10 - PN160
- Materials
-
Body: Carbon, Stainless, Duplex
Seat: Stellite / Metal Laminate (Fire Safe)
Ideal Applications:
Geothermal Steam, High-Pressure Gas, Critical Isolation
Did you know?

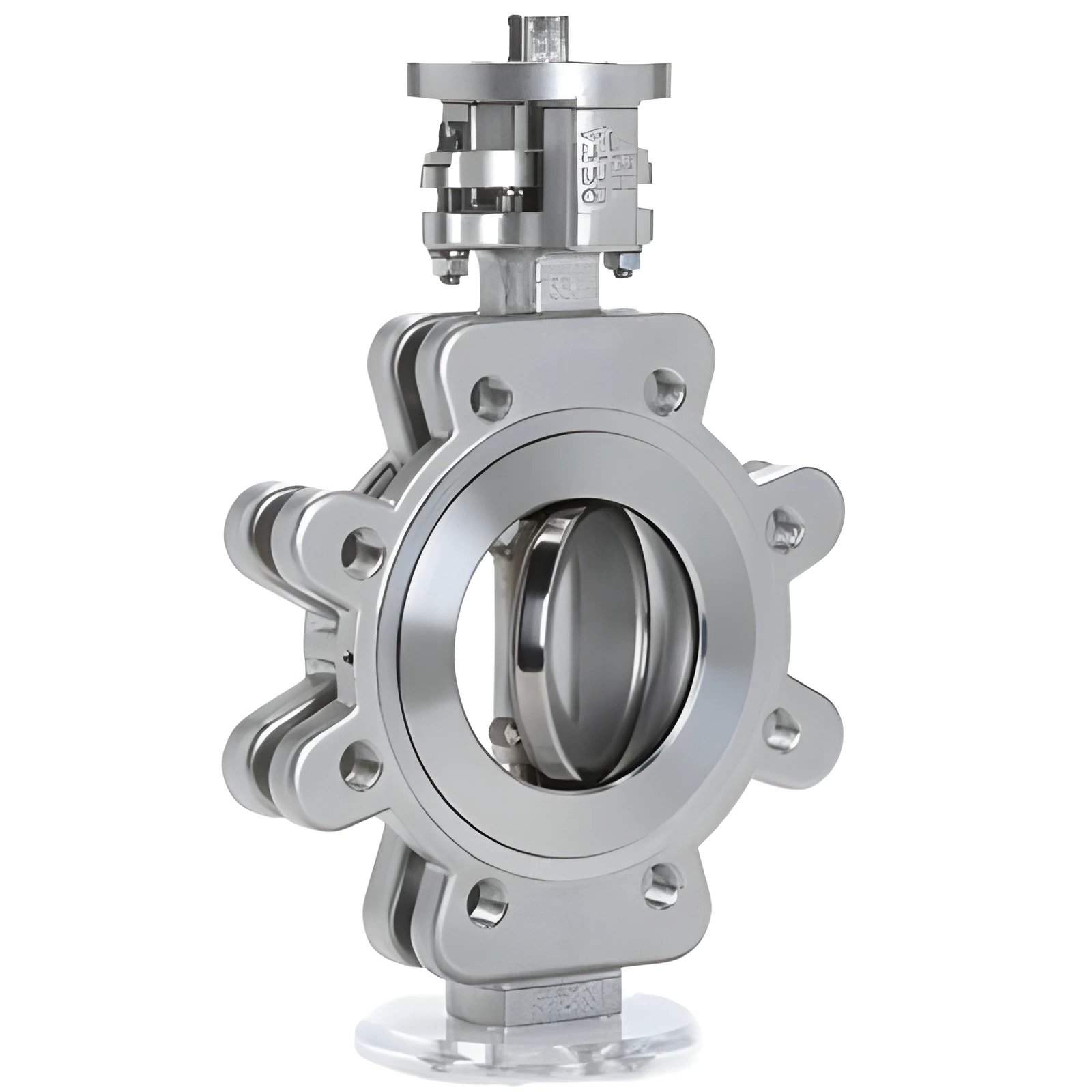

High Performance Butterfly Valve
Double-offset design for reduced wear and higher cycle life.
- Dimensions
- DN32 - DN600
- Pressure
- ASME Class 150 - 300
- Materials
-
Body: Carbon, Stainless, Duplex
Seat: PTFE / R-PTFE
Ideal Applications:
Process Control, Steam, General Industry
Did you know?

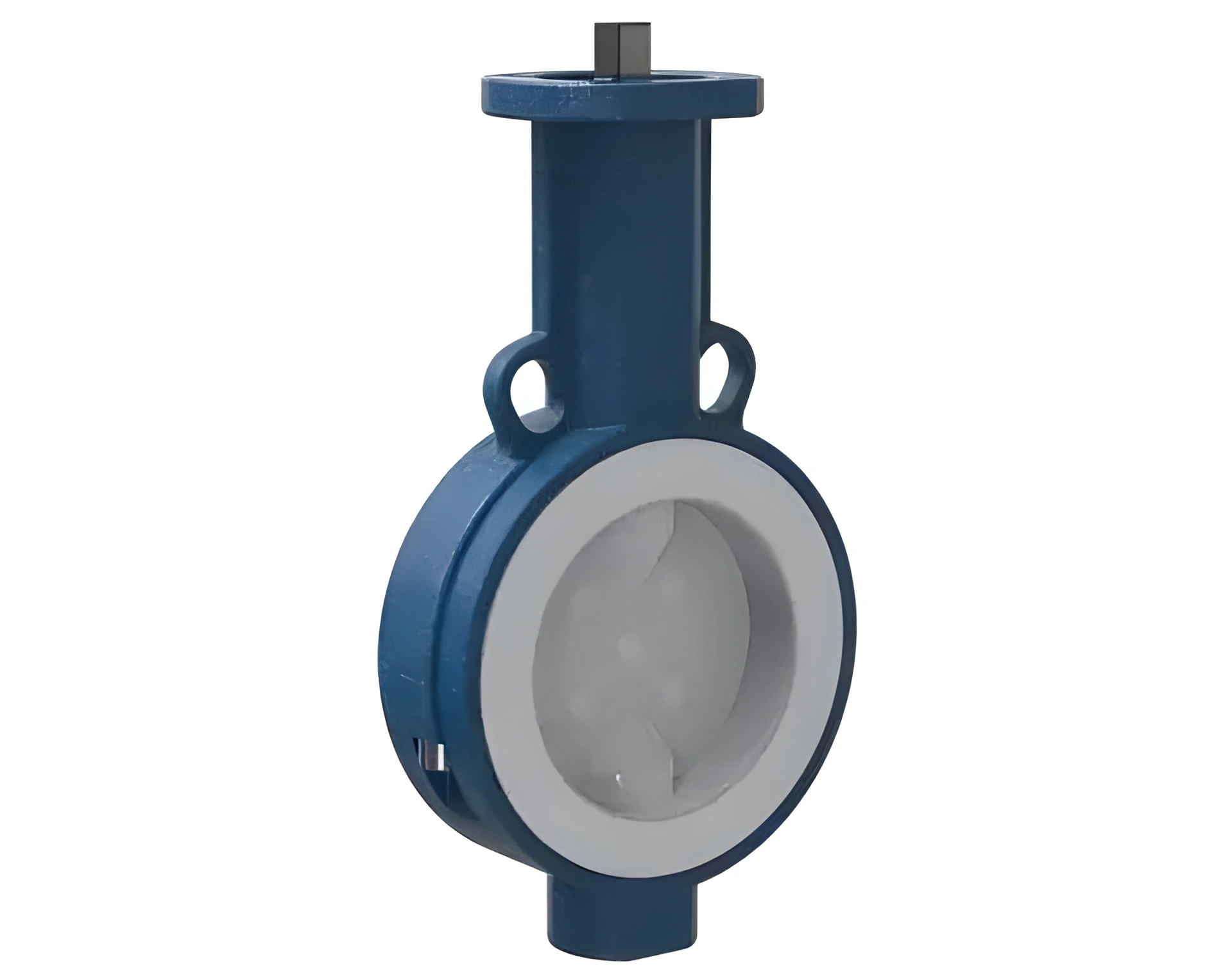

Centric PTFE/PFA Lined Valve
Total isolation for aggressive acids and hygienic media.
- Dimensions
- DN32 - DN600
- Actuation
- Lever, worm gear, pneumatic and electrical
- Materials
-
Disc: PFA Coated / Stainless
Liner: Virgin PTFE
Ideal Applications:
Chemical Processing, Pharmaceutical, Food & Bev
